48 Litre Compact Mini Bar Fridge - Amazing Performer
A great small, compact, quiet running 48 litre mini bar fridge. Unit suits motels, hotels, nursing homes, bedrooms and accommodation venues. Nice trendy 48 litre design with low noise, super chilling capacity, a lock and interior fan for even air distribution. Using Heat Pipe Technology with Japanese cooling module the temperature range is amazing for a non compressor unit, these will get to 0° to 3°C in ambient 25°C, yes that is zero. NOTE: The room temperature MUST not get above 25°C for this type of mini fridge to cool properly, it DOES NOT have a compressor. NOT suitable at all for alfresco or anywhere that room environment is not controlled.
A built in fridge adds a touch of class
If you are building this fridge in, your cavity will need to be at least 470mm wide, 530mm high and 580mm deep.

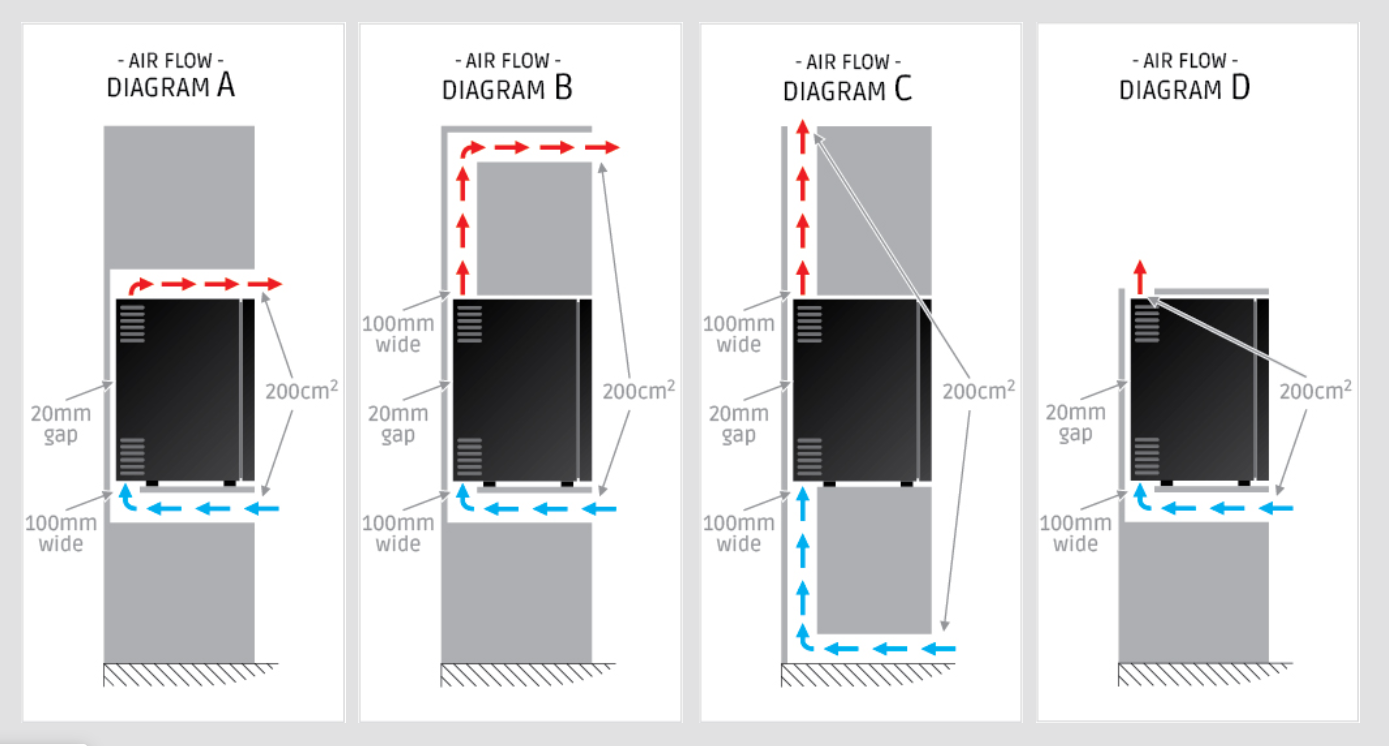

|Minibar installation instructions|
|1. Minibar must stand on a level surface.|
|2. There should be 20mm clearance to the rear wall. No clearance required for the minibar top, side and bottom.|
|3. Air must be freely circulated through the cooling system.|
|4. Air must be preheated by any source of heat.|
|5. In case that grills are added to the air in or out, an opening of 200cm2 minimum must be assured.|
|6. A chimney is created in the back. Cold air enters through the furniture at the base, passes through the cooling system, and warm air rises and escapes.|
|1. The 200cm2 is calculated with L x W, ie; 20cmW x 10cmH = 200cm2|
|2. If cabinet is 'open' at front you need approximately 20mm minimum ventilation at sides, then rear exit point either above or 'over' the fridge. If unit has cabinet door in front of fridge door you need vent under unit, at rear of unit, including 100mm open under units and at top.|
|3. If you have another idea of method to install please contact us so we can advise, there are other wayts to install, this is just the most common way.|
|FEATURE 1: 6 x shelf adjustments at 35, 80, 135, 220, 280 and 300mm positions|
|FEATURE 2: Energy consumption is 0.60kWh/24hrs|
|FEATURE 3: Door is reversible|
|FEATURE 4: Very versatile with lockable and reversible door.|
|ENERGY SAVING FEATURES: LED lighting and Non Compressor|
|ADJUSTABLE FEET:Yes (2 adjustable feet)|
|SHELVING:2 x adjustable shelves (345mm x 95mmD)|
|BODY COLOR: Black|
|DOOR / GRILL FINISH: Stainless Steel|
|INTERIOR FINISH: White Molded Plastic|
|MODEL CODE: BCH48-SS|
|COOLING:This fridge does not have a compressor, but can cool very well, chilling easily to zero 0°C in ambient of 20°C. Unit must be in a controlled temperature environment and has specific ventilation requirements if going into cabinetry.|
|POWER CONSUMPTION: 0.60 kW/24hrs|
|RUNNING COST:Approximately $56.15 per year (Based on 25.64 cents per kilowatt)|
|NOISE LEVEL:39.00dB (similar in volume to a computer)|
|BRAND PARTS USED:Ferrotec Japanese Cooling Module|
|WEIGHT: 13.00 kg|
All refrigerated compressor driven products purchased from The BBQ Store are covered by our exclusive ‘Product Confidence’ warranty; Products purchased OVER $500, 2 Years Australia Wide ‘On Site’ parts and Labor Warranty strictly from the invoice purchase date. This is NOT ‘parts only’ or ‘back to base’, this is real warranty no cost to you. Exceptions: Scratch ‘n’ Dent and items on special (see below) and any application where products other than drinks are used for cold storage. Products purchased UNDER $500: 1 Year Australia Wide ‘New Replacement’ Warranty from the invoice purchase date will be replaced with new, depending on location and logistics. The warranty has been stream-lined in May 2017 to include commercial and domestic under one umbrella. Exceptions: Scratch ‘n’ Dent and items on special (see below) and any application where products other than drinks are used for cold storage. All ‘Scratch N’ Dent bargains and Sales / Specials’ where stock is reduced in price have separate warranty terms which are stipulated on both the website listing and the invoice. These units are deemed to be second hand and are discounted accordingly - their warranty periods are also reduced. The BBQ Store will pay all costs to repair, replace (with similar or equivalent model) or refund (at our sole discretion) for any faulty unit or part thereof should the fault be deemed as a defect in operation, material, or workmanship. The BBQ Store is geared towards fairness in all cases. In most instances when we recognise a problem and the problem can be remedied on-site, the work is undertaken via our fleet of service technicians. Should it prove difficult to diagnose the fault or perform the repair work in the space or environment provided, or if the unit is located outside the The BBQ Store service area then the unit will need to go off site for repair and return. Warranty Does Not Include;
a) Incorrect installation – such as a lack of ventilation, exposure to the elements where it’s not part of the refrigerator specification, sunlight in particular. b) Abuse, misuse or alteration. c) Failure to let compressor oil and/or refrigerant settle after relocation. d) Damage during movement by the client from one location to another including lifting the unit by the doors or door handles. e) Act of god or his son, or aliens invading earth. f) Insect and/or vermin infestation. g) Electrical/Power surges and/or storm damage. h) Damage to any area or structure due to movement of the fridge, like wooden floors, walls and glass etc. i) Faults due to client re programming or setting controllers wrong. j) Blocked condensers due to not being cleaned, it is up to customer to ensure condensers are cleaned periodically, see www.cleanme.eu for relevant info on the type of units that need this. • Any indirect, incidental or consequential damages, spoilt wine or frozen/exploded drinks, water damage including condensation forming on outer glass etc., except as provided for by ACL, Australian Consumer Law.
How to Obtain Service: For assistance, there are 3 x ways below, to help we require fridge model, serial number, date of purchase and a description of the problem, please ensure you have as much info as possible to speed up process, a picture of the fridge showing wide shot and also the controller (if applicable)
There is no guaranteed time limit for repairs to be carried out due to the nature of refrigeration products and the technician time booking constraints, you must allow 7-14 days as a fair down time, refrigeration mechanics these days are very busy and jobs have to be booked in advance. Sometimes units will need to be arranged for return and repair, which can be time consuming. In saying all this, all warranty issues are regarded as ‘urgent’, and every effort will be made to have the problem rectified immediately. In some cases to speed the process up where a job is considered a minor repair, the parts may be sent direct to the client and authorization will be given to make the repair themselves with the warranty not being voided. This is popular in situations like fan replacements, which are easy to swap, when the client is an actual tradesman or handy with a screwdriver. We will never allow electrical wiring jobs without tech, only plug ‘n’ play style jobs. Proof of Purchase: We have made proof of purchase not a mandatory thing, but of course it will help. When purchased we internally register the model and your details so to find details we need invoice (as we keep serial numbers) or either email address or phone number that you lodged at the time. Authorised Service Agents: Service is provided by The BBQ Store and its’ authorized service network of refrigeration mechanics Australia Wide. We attempt to cover all areas though certain remote areas can often translate to longer waiting periods. We don’t allow for services outside of normal working hours, otherwise call out fees are applicable. ALL call outs have to be arranged and performed by approved The BBQ Store service technicians. Clients cannot arrange their own technicians within warranty period at all, this could void the warranty. Replacement Parts / Items Out Of Warranty: Parts will always be available at very reasonable prices after the warranty period is finished, our exclusive 10year parts availability guarantee is great piece of mind. It is very important to The BBQ Store to keep clients happy after the warranty period has expired. The following link allows you to lodge a claim/parts request, so add as much info as you can and we will assist. Effective for 95% of products, some items are excluded due to low market volume, factory closures and tooling discontinuation. *Check our unique Fridge Diagnosis Knowledge Base To Assist In Finding Fault.
